The GS16-GSI16 Series from ABL Electronic Supplies provides a high-quality solution for grounding in electrical and industrial applications. Designed for superior conductivity and durability, these braided ground straps are essential for reducing electrical noise, minimizing resistance, and having effective grounding. Whether for electrical panels, automotive systems, or industrial machinery, our grounding straps deliver unmatched performance.
High-Quality Construction for Maximum Performance

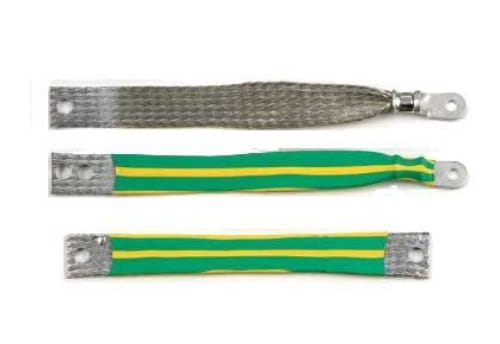

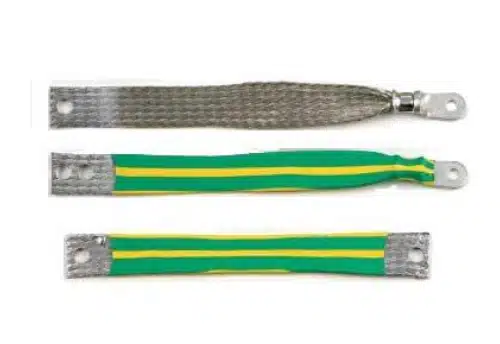

Our ground strap braided products are made from tinned copper braid, offering excellent flexibility and corrosion resistance. The GS16 series is a non-insulated braided ground strap, while the GSI16 series includes an insulated option for added protection and ground coding in specific applications.
The GS16-GSI16 Series offers both insulated and non-insulated variations to meet different project requirements. The GS16 (Non-Insulated) version is ideal for standard grounding applications where additional insulation is not required, while the GSI16 (Insulated) version features a protective coating in black or green/yellow for easy identification and added safety.
Both variants guarantee efficient electrical grounding with minimal resistance, making them ideal for a variety of environments. These straps are designed for adaptability in complex grounding configurations and ensure long-term reliability in demanding applications.
Versatile Applications
Our braided grounding straps are widely used in various industries due to their adaptability and efficiency. They are commonly found in electrical panels and enclosures, providing reliable grounding to minimize interference. In the automotive and transportation sectors, they play a crucial role in vehicle grounding and preventing electrical failures.
Industrial machinery benefits from these straps as they ensure proper grounding, enhancing both safety and performance. They are also used in telecommunication systems to reduce electromagnetic interference in sensitive environments.
Technical Specifications
- Material: Tinned Copper Braid
- Strap Type: Non-Insulated (GS16) or Insulated (GSI16)
- Insulation Options: Black or Green/Yellow (GSI16)
- Custom Lengths Available
- Multiple Hole Sizes for Various Applications
- Amperage Ratings (Non-Insulated Braid, Approximate):
- 4/0 AWG – 370 Amps – 2.125″ Width
- 3/0 AWG – 290 Amps – 2.000″ Width
- 2/0 AWG – 250 Amps – 1.750″ Width
- 1/0 AWG – 235 Amps – 1.375″ Width
- 1 AWG – 195 Amps – 1.000″ Width
- 2 AWG – 165 Amps – 1.375″ Width
- 3 AWG – 145 Amps – 1.375″ Width
- 4 AWG – 120 Amps – 1.000″ Width
- 6 AWG – 93 Amps – 0.500″ Width
- 7 AWG – 85 Amps – 0.750″ Width
- 9 AWG – 62 Amps – 0.625″ Width
- 10 AWG – 53 Amps – 0.500″ Width
- 12 AWG – 40 Amps – 0.375″ Width
- 14 AWG – 32 Amps – 0.025″ Width
(Note: Amperage ratings are approximate and may vary based on service conditions, ambient temperature, and surrounding components.)
To order a custom braided grounding strap, simply add the required length (hole to hole) after the base part number. Example:
- GSI16-010-12BK-1/4-1/4 (Insulated, Black, 1/4″ Hole)
- GS16-010-12-1/4-1/4 (Non-Insulated, 1/4″ Hole)
Be sure to specify the hole size required when placing your order.
Order Your GS16-GSI16 Braided Ground Strap Today
Selecting the right braided grounding strap is essential for achieving optimal grounding performance. To order, simply specify the part number with the desired length, hole size, and insulation type (if needed). For custom requests or further assistance, contact ABL Electronic Supplies today and let us provide the perfect grounding solution for your needs.
